SUNRUNNER OWNER'S MANUAL TABLE OF CONTENTS
WORLDS LOWEST PRICES 1(800)477 0248



Introduction…………………………………………………………2



EMI Warning……………………………………………………….3



Rules For Safe Use ...................................................................... 6



Operating The Sunrunner . .......................................................... 8



Control Through Tight Spots ...................................................... 15



Dismantling The Sunrunner………………………………………17



Assembling The Sunrunner ……………………………………....21



Loading The Sunrunner………………………………………..….22



Care & Maintenance Of Scooter……………………………..……23



Accessories ................................................................................ 25



Care of Batteries ......................................................................... 26



Technical Data  ........................................................................... 30











-1 -

INTRODUCTION



Congratulations on the purchase of your



SUNRUNNER^TM scooter. SUNRUNNER^TM owners are a distinguished, growing group of people who care about quality and performance and craftsmanship. Because of the unique "Transaxle" engineering, SUNRUNNER^TM is able to navigate a multitude of terrains, with comfort and stability other conventional scooters cannot provide.



With careful reading of this manual and not exceeding the parameters set down, you can ensure that your SUNRUNNER^TM scooter will give you years of trouble free service and enjoyment. SUNRUNNER^TM scooters are a quality scooter made with an eye to style for the 21st century.



Remember  "SUNRUNNER^TM Providing Mobility Today With Tomorrow's Technology"



 - 2 -

EMI WARNING



ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE

SOURCES



Powered motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, twoway radios, and cellular phones. The interference (from radio wave sources) can cause the powered scooter to release its brakes, move by itself, or move in unintended directions. It can also permanently damage the powered scooter's control system. The intensity of the interfering EM energy can be measured in volts per meter (V\M). Each powered scooter can resist up to a certain intensity. This is called "immunity level". The higher the immunity level, the greater the protection. At this time, current technology is capable of achieving at least a 20V\M immunity level, which would provide useful protection from the more common sources of radiated EMI. This powered scooter's immunity level as shipped is not known at this time. Testing is currently underway. There are a number of sources of relatively intense electromagnetic fields in everyday environment. Some of these sources are obvious and easy to avoid. Others are not apparent and exposure is unavoidable. However, we believe that by following the warning listed below, your risk to EMI will be minimized.



The sources of radiated EMI can be broadly classified into three types:



1.Handheld portable transceivers (transmittersreceivers) with the antenna mounted directly on the transmitting unit. Examples include: citizens band (CB) radios, "walkie talkie", security, fire, and police transceivers, cellular telephones, and other personal communication devices.

**NOTE: Some cellular telephones and similar devices transmit signals

while they are ON, even when not being used.



2.MediumRange mobile transceivers, such as those used in police cars, fire trucks, ambulances, and taxis. These usually have the antenna mounted on the outside of the vehicle.



3.Longrange transmitters and transceivers, such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. "NOTE: Other types of handheld devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dyers, so far as we know, are not likely to cause problems to your powered scooter.













- 3 -



POWERED SCOOTER ELECTROMAGNETIC INTERFERENCE (EMI)



Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields ED SCOOTER ELECTROMAGNETIC INTERFERENCE (EMI)



Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from handheld radio sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the powered scooter's control system while using these devices. This can affect powered scooter movement and braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system of the powered scooter.



WARNINGS



Electromagnetic interference (EMI) from sources such as radio and TV stations, amateur radio (HAM) transmitter, twoway radios, and cellular phones can affect powered scooters. The following warnings listed below should reduce the chance of unintended brake release or powered scooter movement which could result in serious injury.



1.Do not operate handheld transceivers (transmittersreceivers), such as citizens band (CB) radios, or turn ON personal communication devices, such as cellular phones, while the powered scooter is turned ON;



2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them;



3.If unintended movement or brake release occurs, turn the powered scooter OFF as soon as it is safe;



4

4.Be aware that adding accessories or components, or modifying the powered scooter, may make it more susceptible to EMI (NOTE: There is no easy way to evaluate the overall immunity of the powered scooter).



5.Report all incidents of unintended movement or brake to the powered scooter manufacturer, and note whether there is a source of EMI nearby.



WHEELS AND TIRES



ALL SUNRUNNER^tm SCOOTERS HAVE SPLITRIM WHEELS



When changing a wheel, please remove centre bolt and then remove wheel.



Replace with new/repaired wheel and rebolt the centre bolt.



When changing a tire you must deflate the tire. Remove the centre bolt after deflation and then remove the remaining four bolts.



5





RULES FOR SAFE USE



Please do use your SUNRUNNERTM scooter often and let it expand your horizons. The more mobility your SUNRUNNER TM brings the happier we will be! But, as with all things, observing a few rules will ensure safe scootering. So please........



1.          Do not ride the SUNRUNNER TM without reading this instruction manual.

2.          Do not exceed any incline over a 8 ° (1 in 4) grade.

3.          Do not carry passengers.

4.          Do not mount or dismount SUNRUNNER TM unless brake is engaged.

5.          Do not operate SUNRUNNER TM if the unit is in freewheel mode.

6.          Do not mount or dismount SUNRUNNER TM unless key switch is OFF.

7.          Do not back up SUNRUNNER TM onto uneven surfaces or inclines.

8.          Do not back up SUNRUNNER TM unless the speed governing dial is set low.

9.          Do not turn suddenly at full speed.

10.        Do not ride SUNRUNNERtm where you cannot safely or legally walk.

11.        Do not ride SUNRUNNER TM unless the seat is locked into riding position.

12.        Do not ride SUNRUNNER TM over deep, soft terrain, (e.g. soft dirt, deep grass, loose gravel).

13.        Do not drink alcoholic beverages and then ride.

14.        Do not climb curbs that exceed your model's capacity.

15.        Always stop fully before changing direction, (forward or reverse).

16.    Always approach curbs at low speed                                                                                                                                                                                                                                                                                 Always approach curbs at low speed.

17.     Always approach curbs at a 90% angle.

18.     Always keep your feet on the platform when riding.

19.     Always proceed carefully while riding, especially as you approach the downgrade of a ramp or hill.

20.     Always proceed carefully while riding on uneven surfaces.

21.     Always consult your physician if in doubt about your ability to operate a scooter.

22.     When proceeding up any incline please move seat to the most forward position or if you have deluxe seat put the seat back in 90° position.

23.     TRANSPORT  Do not sit on your SUNRUNNER TM while the scooter is in a vehicle. Always strap down the scooter, then transfer to vehicle seat, fasten safety belt.



PLEASE Remember you are a motorized pedestrian and must observe all rules and regulations of other pedestrians wherever possible.



DISCLAIMER



SUNRUNNER ^TM is not responsible for any damage or injury incurred due to improper or unsafe use of the SUNRUNNER ^TM  scooter. Mechanical or electrical defects will be dealt with on a contingency liability basis. The part or parts will be replaced, but no responsibility for any damage or injury can be implied to SUNRUNNER ^TM .



OPERATING THE SUNRUNNER



CONTROL FEATURES



1.Speed Adjustment Dial: (See Fig. 1 & 2) This allows you to preselect your desired top speed. The dial can be set anywhere between 0 and 10 increments. Turn the dial to slow for very gentle operation. Turn it clockwise to increase your speed.



2.Horn Button: (See Fig. 1 & 2) Press button to cause a warning sound.  Thumb Lever Control (WigWag): (See Figure 1 & 2) Located under handle bar grips. Your speed, forward and reverse motion is controlled here. The right thumb lever moves the SUNRUNNER TM in a forward motion and also controls the rate of speed by the amount of pressure applied. The left thumb lever moves the SUNRUNNER T11 in a reverse motion and controlse amount of pressure applied. The left thumb lever moves the SUNRUNNER T11 in a reverse motion and controls the rate of speed by the pressure applied. The lever when released will return itself, and you will stop gently. All braking is engaged when either lever is released.









Figure 2



4.LED Battery Indicator: (See Figure 1 & 2) Located on side of control

panel (beside the horn). These lights indicate the amount of charge

you have in the batteries. Green is safe or fully charged. Yellow is caution

and approximately half charge. Red is warning and less than half a charge.



5.Key Switch: ( See Figure 1 & 2) Located directly on the right hand side of the control panel. Insert the key vertically (Figure 1) and turn to horizontal position (Figure 2) to engage (green LED light will illuminate). To turn off scooter turn key back to vertical position and remove.



DELTA TILLER CONTROL



Figure 3



1.Delta Control Tiller: (See Figure 3) This handle can be adapted to any of the SHOPRIDERTM scooters. It is ideal for anyone who has poor thumb control or has any kind of tremor. Steering can be done with the palms of the hands.



2.Wigwag Extensions: (See Figure 3) These can be adapted to any SUNRUNNER T"'' scooter. This extension will now make the thumb control wigwag a finger control. Your authorized SHOPRIDERTM dealer is able to reverse the levers so when you pull on the right lever you will go forward and when you pull on the left lever you will go in reverse.



10





SEAT CONTROLS



Figure 4A                                                                                                     Figure 4B





Fishon Seat: (See Figure 4A & 4B) This seat can fold down for easy transportation. It also has removable covers so that you may add thicker padding if you require it.



Fishon Seat: (See Figure 4A & 4B) This seat can fold down for easy transportation. It also has removable covers so that you may add thicker padding if you require it.



1.Adjustable Armrest Width: (See Figure 4A & 4B) On each side underneath the seat you will find a knob. By loosening this knob you are now able to adjust the armrests to whatever width you desire or remove them completely.



2.Flip up Armrests: (See Figure 4A) By pulling up on the end of either armrest it will flip up for easy transfer in and out of your SUNRUNNER TM When the armrest is flipped up you will notice there is a bolt that can be adjusted up or down to change the angle of the armrest.



3.Seat Lock Lever: (See Figure 4 A & B) This allows the seat to swing 360 degrees and lock in any position desired. It is a bar with a knob on its end, located under the left side of the seat. Pull up to release the seat to rotate to any position. Push down, to lock the seat in any position.



11





7.Free Wheeling Device: (See Figure 6A & 613) This is located on either the left or right hand of the scooter depending on year and model number of the SUNRUNNERTM. It is easy to locate as it has a red handle lever (See Figure 6A & 6B). To freewheel the scooter, push down on the lever. To engage the

brake again, simply pull the lever up. You will find now that you are not able to push your scooter.

If the scooter is in free wheeling mode, when you turn your scooter on and depress your speed control

nothing happens. It is good practice to return the free wheel lever to the drive (up) position whenever it

is unattended and/or when freewheel is no longer required.



Figure 6A



"Do not SIT ON THE ..SCOOTER WHILE. IN FREEWHEEL MODES."



AntiTip Wheels: (See Figure 613) These wheels are located on the rear frame of the scooter. On older models the antitip wheels are removable by pulling the pin. On the new SUNRUNNER TM the antitip wheels are not removable.







MOUNTING



For your first sessions, be sure you and the SUNRUNNER ^TM are on a level surface. Put the key in its slot, but leave it turned off. Stand behind the SUNRUNNER ^TM seat, and reach down to the "Seat Lock Lever". It is located on the left side directly under the armrest. Grasp the knob on the bar and pull up, releasing the seat. It will now turn easily to meet you. If need be, you can lock the seat in any position to make it steady before you sit down. If you have a cane, place it in the optional cane rack. Seat yourself and swing the seat to face the handlebars. Make sure you are straight, then reach under the seat to the bar again with your left hand. Push the bar down to lock the seat in position. Next, turn the "Speed Control Dial" to slow, and turn key to ON position. Press the right thumb control to start you in a forward motion. To stop simply let go, this will apply your brake.



DISMOUNTING



Before dismounting, Always turn key to OFF position. Locate the seat lever and pull up. Now you can swing the seat away, lock it, pick up your cane if applicable, and ease onto your feet. Use your armrests if you require steadying rather than the front tiller when mounting or dismounting your SUNRUNNER^TM



PARKING IN PUBLIC



If you need to park and leave your SUNRUNNER^TM, simply remove your key. This will keep the brake on, and will make your scooter difficult to move. It is best to leave it in sight of someone like a store clerk who can watch it for you. Another precaution is to note your serial number (located on the four wheeled scooters on the left hand side of front frame and on the three wheeled scooters on the left rear of frame) and date of purchase on your warranty in this manual.



13

BASIC DRIVING



Make sure you are properly seated on the SUNRUNNER ^TM , and that the "Speed Control Dial" is turned to slow.



Push the "Thumb Lever Control", as described earlier. You will very gently accelerate. Release the lever, and you will gently stop. Practice these two basic functions until you get used to them.



Steering the SUNRUNNER ^TM is easy and logical. Just be sure to remember to give wide clearance when turning so that the rear wheels clear any obstacle.



Short cutting a sidewalk corner can mean the back wheel will go off the sidewalk, causing problems if the corner is very rough. Again, avoid this at all times by steering an exaggerated wide arc around the obstacle.



If you must steer in a tight spot, such as entering a doorway or when turning around, stop, turn the handlebars to where you want to go, then apply power gently. This will make the SUNRUNNER ^TM turn very sharp. It will still go gently, and with complete stability.

 turn very sharp. It will still go gently, and with complete stability.



Backing up requires attention. Turn your "Speed Control Dial" to slow before you back up. Push the left "Thumb Lever Control". Remember, when you back up you have to steer in the opposite direction to the way you want to go.



Remember: If it is a tight turn, turn your steering column before applying power. Steer wide of all corners and obstacles.



Going through doors, with back wheels: If you're not moving, your rear wheel is probably caught. Reverse and try again. Take your time.



14

CONTROL THROUGH THE TIGHT

SPOTS



Chances are good that when you start really using your SUNRUNNER ^TM you will meet some obstacles that will require some practice to drive through smoothly. Here are some common obstacles, with tips that will help master them quickly. You will soon be in control through heavy doors, up and down ramps, up and over curbs, through grass, gravel, and up grades with surprising ease by following these tips.



IN CONTROL THROUGH DOORS



Approach an unfamiliar door slowly, sizing it up. Does it have a knob or push bar? Does it open toward or away? Think in terms of using the power of the SUNRUNNER ^TM do the work for you!



Hold the doorknob or bar in one hand and apply the power with the other hand. If it is a self closing door, you can go through allowing the door to close behind you, if you go quickly enough. If not, just stop when you are clear of the door and push it closed.



If the door opens toward you, hold the knob or bar with one hand and gently press on your left thumb lever, and allow the gentle reverse power to do the work. When the door is open wide enough, push the forward lever and go ahead quickly, leaving your hand on the door to keep it free of the scooter and letting go as you pass the doorjamb. It is an easy technique.



IN CONTROL ON RAMPS

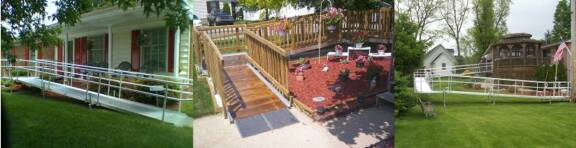

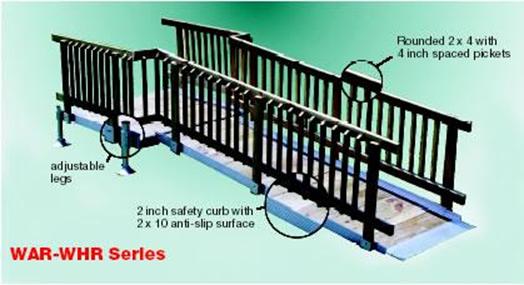

With the ADA (American Disabilities Act) more buildings require ramps for scooter access. Some have a switchback in the middle, and good cornering is required.



Just take wide swings with your front wheels around any tight corners, so the back



15

wheels follow a wide arc to stay clear of the corner. When you have stopped while facing uphill, starting up again simply requires that you apply forward power.



Going down any ramp or hill, keep the dial set to "Slow". This will keep you in a safely controlled descent. If you wish to stop completely, release the thumb control lever slowly.



IN CONTROL OVER CURBS



Most curbs have wheelchair access ramps at intersections. If there is not an access ramp, and you cannot find a driveway ramp either, you may be able to go over the curb, if it is small enough. The curb must be under 2" if you have 10" wheels.



BE CAREFUL. Going up or down a curb must be done ONLY AT A DIRECT 90 DEGREE ANGLE. Always approach the curb so that both back wheels go over at the same time, in the same way. Never go up or down hills on an angle. This can cause stability problems.



Going down a curb is simple, but must be done slowly to avoid a jarring thump. Slowly drive the front wheel(s) over the curb. Use as little power as possible.



Going up a curb, turn your speed adjustment dial to "5". Start 2 to 3 feet back from the curb. Apply power gently, increasing as needed. Steer straight and go straight up. Be prepared to feel a bump as each tire reaches and climbs the curb. Again, with a little practice, you will find this procedure easy to do.



IN CONTROL OVER GRASS, GRAVEL AND GRADES



SUNRUNNERTM performs admirably in grass, gravel and on hills. But you must NOT exceed the parameters set down in this manual. Please refer to the Rules For Safe Use. Safety must come first. If you are unsure about any situation, avoid it.



Feel free to use your SUNRUNNER TM on lawns or in park areas. Avoid long, unkempt grass. Otherwise, just follow the rules.



16

Packed gravel such as on driveways or roads will present no problem. Loose, deep gravel should be avoided, as well as loosely packed sand. Because of the power of your SUNRUNNER TM scooter, you are able to climb steep hills. BUT the maximum safe grade limit is 8° or an incline of approximately 4 to 1 (see below). The reason for this is to ensure proper stability. Remember, read and follow the Rules For Safe Use at the front of this manual.



Maximum Climbing Angle: 8⁰ ' with anti tip device



Recommended

Load Carrying Capacity:



91 Kg  (200 lbs.)



DISMANTLING THE

SUNRUNNER



OVERVIEW OF SAFETY PIN & PLUGS



The SUNRUNNER ^TM is manufactured with portability in mind. Dismantling the SUNRUNNER ^TM can be done quickly and no tools are required:



1.        Safety Pin: ( See Figure 7) This pin, attached on a chain is the device used to separate the front from the rear of the scooter. This pin is also used to hold the antitip wheels (older models) in place.



Figure 7

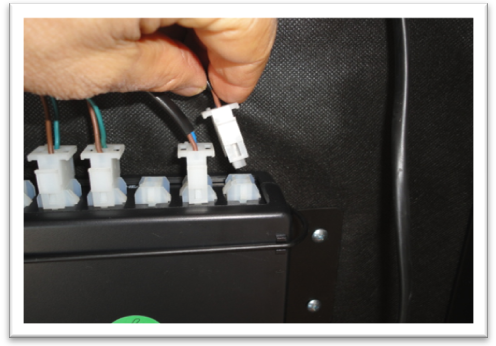

2.Electric Plugs: (See Figure 8) These plugs consist of a shrouded male part and a shrouded female

part. The plugs are polarized (can only connect one way) and are easy to connect and disconnect. These plugs are also colour coded. The plugs are as follows: two battery plugs (red & black), charger plug (blue), control plug (yellow), motor plug (white). To disconnect the plugs, simply take the plug

and locate plug release (on top of plug) depress and pull the two parts of the plugs apart.



Main Control Plug: (See Figure 9) Located behind the batteries on the left (yellow in colour). Locate

the top of the plug, depress the plug release and pull the two parts of the plug apart.

Figure 9



18

4.Battery Straps: (See Figure 10) This strap secures the batteries in place. Because all the straps are Velcro there are no buckles to fasten or unfasten. There are also two battery straps that go around each battery. These allow you to lift each battery up.



5.Battery Charger Plug: , (See Figure 11) Located behind the batteries on the left side ( blue plug).

Locate the top of the plug, depress the plug release and pull the two parts of the plug apart.

6.Adjustable Tiller Lever: (See Figure 12) This lever is located on the left side of the tiller. By pushing the lever you can make the tiller constantly adjustable. By pulling the lever you can adjust and lock Figure 11 the tiller in three separate positions.



          7.Carry Handle: (See Figure 13) This red coloured handle is located on the front of the scooter on the SUNRUNNER TM. This allows you to pick up the front assembly of the scooter. Please never pick up the front assembly by the shroud (See Figure 131).



19

Figure 12



The SUNRUNNER TM dismantles into 5 basic parts, (See Figure 14) as follows:



1.THE SEAT, mounted on a base with removable arm rests.



2. THE BATTERIES, with Velcro battery straps.  THE FRAME, housing the wheels and power train assembly. This splits apart as follows: a) The front wheels) and platform assembly. b) The rear wheels and power train assembly. These parts fit together with the safety pin, (See Figure 7) which is built into each part. The rear cover. This fits over the batteries and power train assembly.



Place the SUNRUNNER T"'' on a flat surface with at least 5 ' x 10' of clear floor space. Pull the key out. Start by standing behind the seat, facing the handlebars. Put your left hand down to the seat lock lever knob, below the left armrest. Pull the knob upward toward you releasing the seat. Place your right hand on the seat and with a firm grasp pull directly up. The seat will come out. Place it to the side. Remove the rear cover simply by lifting it from the scooter. Place it to the side.



Release the plugs on the batteries as discussed under electrical plugs.











Release Velcro battery strap which secures the batteries. On each battery there is a strap. Use this

strap to lift the batteries and place them aside.  To split the frame simply pull the safety pin. Now grasp the handle on the rear power train and the loop at the front platform assembly and gently pull apart.

Next pull the steering column towards the floor of the platform. Now the scooter is ready to transport.                                                                                                                Figure 14
